Presentation
The BIOTRADE hydro-ejector is a self-aspirating aerator designed to provide oxygenation and mixing in biological basins. This system is based on a pump, a hydro-ejector and an air suction pipe, creating an optimised mixing chamber for maximum oxygen transfer into the effluent.
In addition to this standard model, BIOTRADE also offers tank-mounted hydro-ejectors, sized on request to meet the specific requirements of each installation.
Models
BIOTRADE offers hydro-ejectors in two versions:
- Frame-mounted: for direct installation in basins, with power ratings from 6 to 18.5 kW.

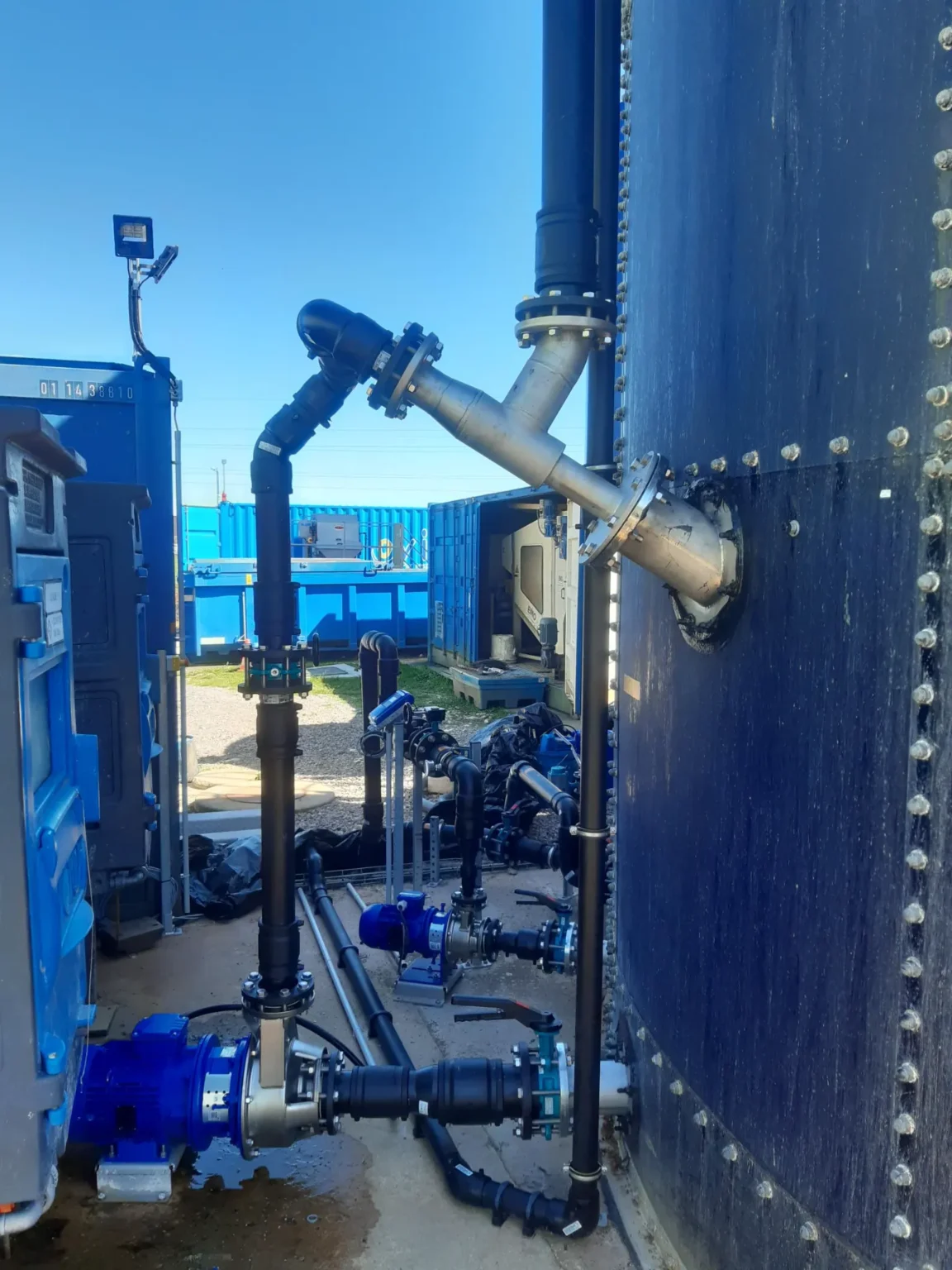

- Tank-mounted: sized on request for integration into tanks or reservoirs.
Technical Specifications
| Power (kW) | 6 | 9 | 14 | 18.5 |
| Number of hydro-ejectors | 1 | 1 | 1 | 2 |
| Motor speed (rpm) | 1470 | 1470 | 1470 | 1470 |
| Insulation class | H | H | H | H |
| Motor protection | IP68 | IP68 | IP68 | IP68 |
| Current at 400 V (A) | 5.4 | 9.3 | 10.7 | 36.9 |
| Efficiency (%) | 70.8 | 76.5 | 76.8 | 92.6 |
| Weight (kg) | 380 | 430 | 570 | 690 |
| Flow rate (m³/h) | – | – | – | 500 |
| Recommended water level (m) | Min. 1.5 / Max. 4 | Min. 1.5 / Max. 4 | Min. 1.5 / Max. 4 | Min. 1.5 / Max. 4 |
