Presentation

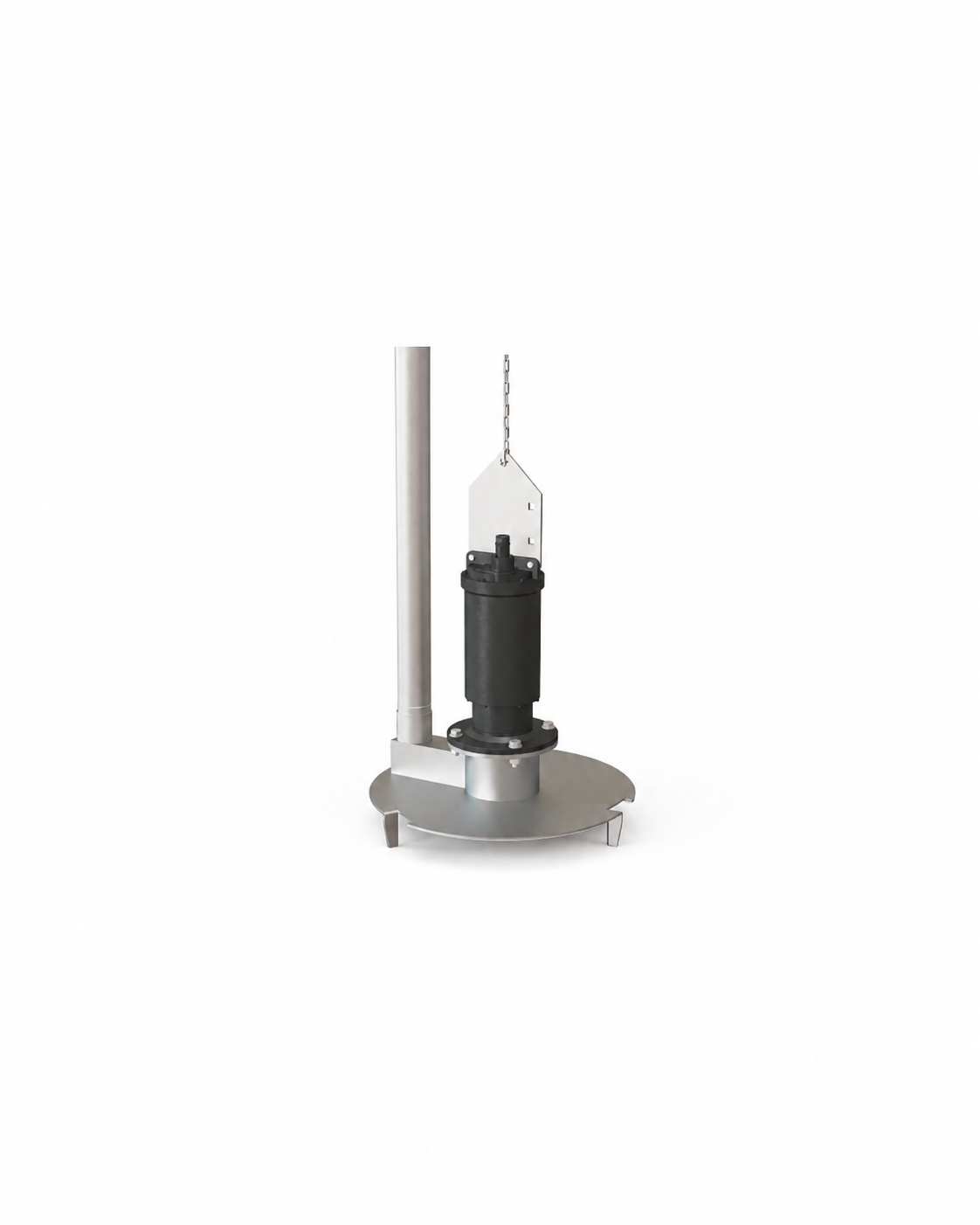

The AeroDyn grease removal turbine is a submerged, self-aspirating solution designed to provide efficient mixing and promote the separation of grease, oils and suspended solids in treatment basins.
Developed and manufactured in France by BIOTRADE, it diffuses micro-bubbles of air into the effluent. These bubbles help grease rise to the surface and contribute to improved treatment of municipal or industrial wastewater.
Its self-aspirating system operates without an external blower, reducing peripheral equipment and operating costs. Its robust, anti-clogging design is suitable for demanding environments such as wastewater treatment plants, slaughterhouses, leachate treatment facilities and agri-food sites.
Model

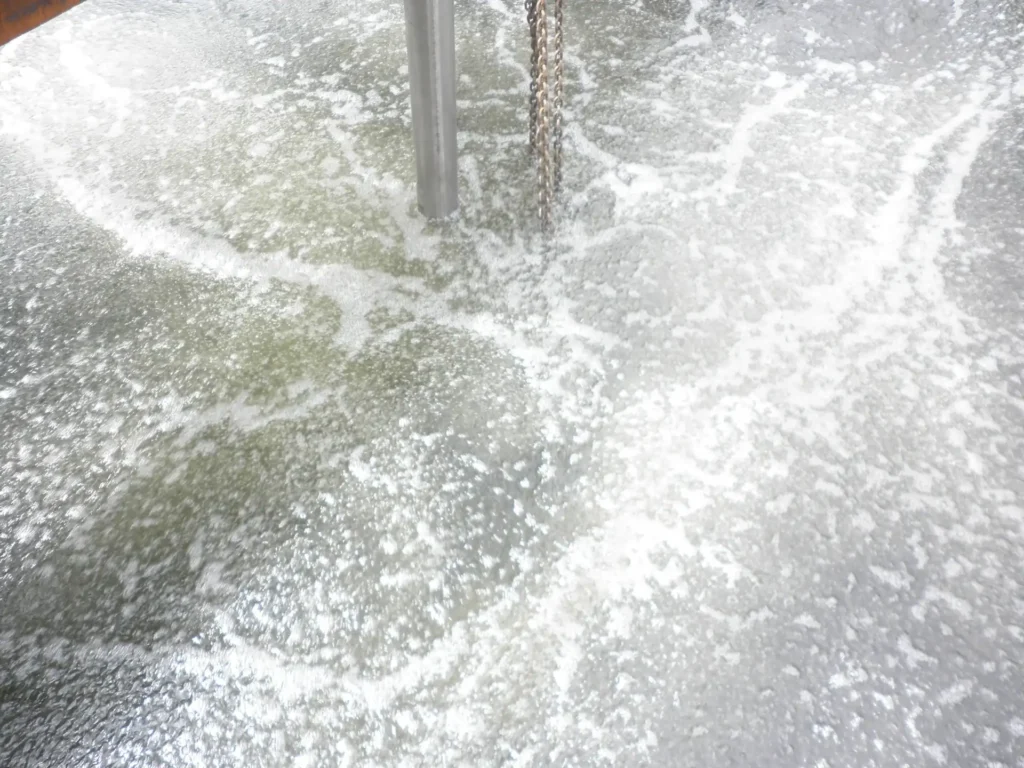

The AeroDyn is installed directly in the basin. Its motor drives a high-speed turbine that draws in air through an intake tube, then diffuses it as micro-bubbles.

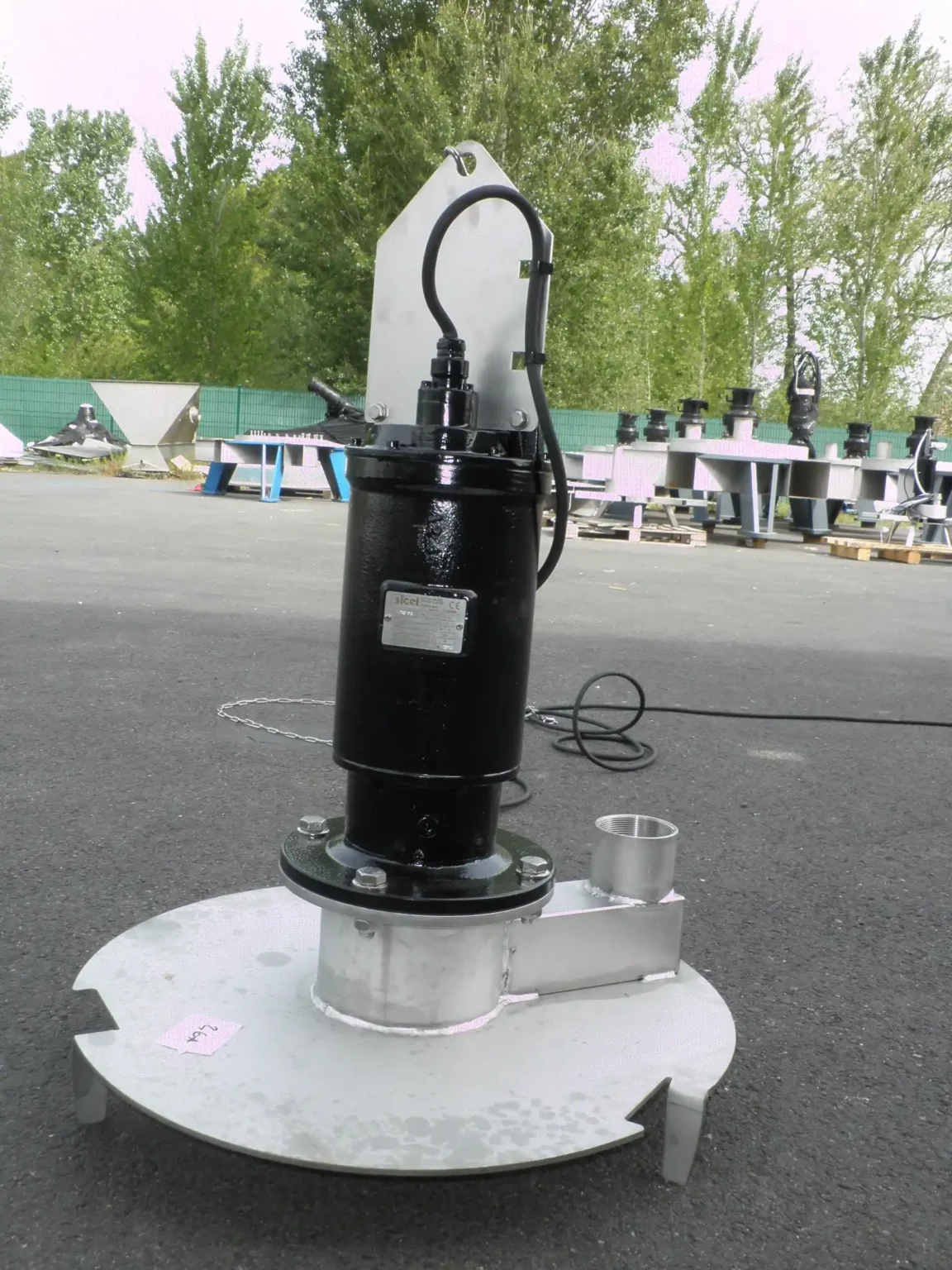

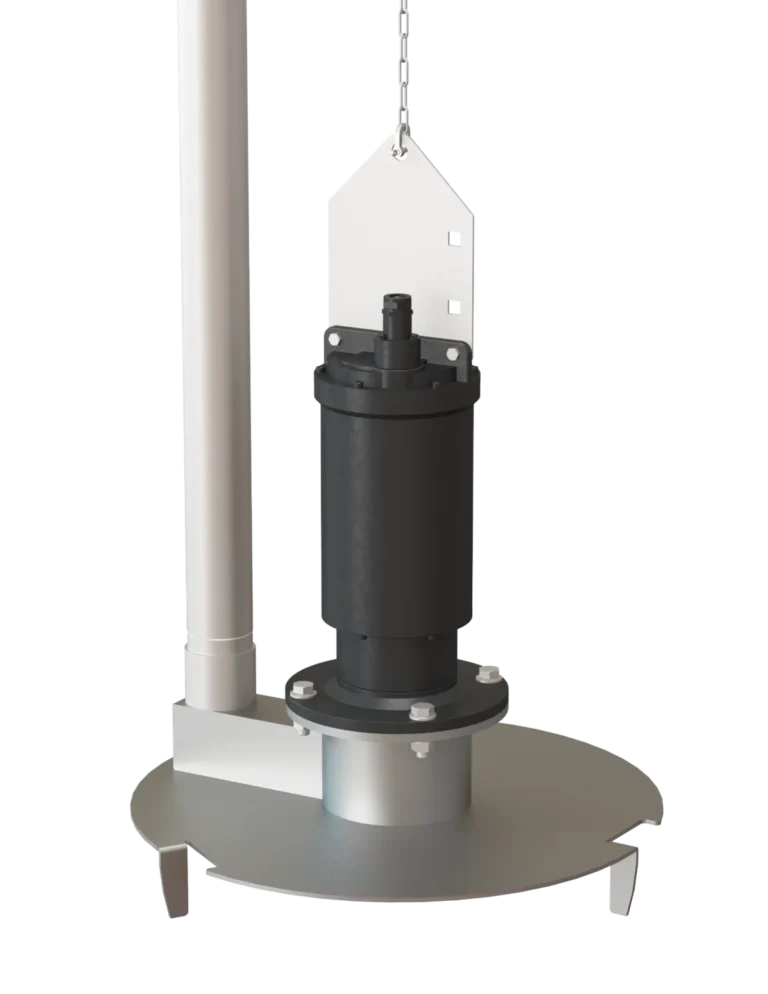

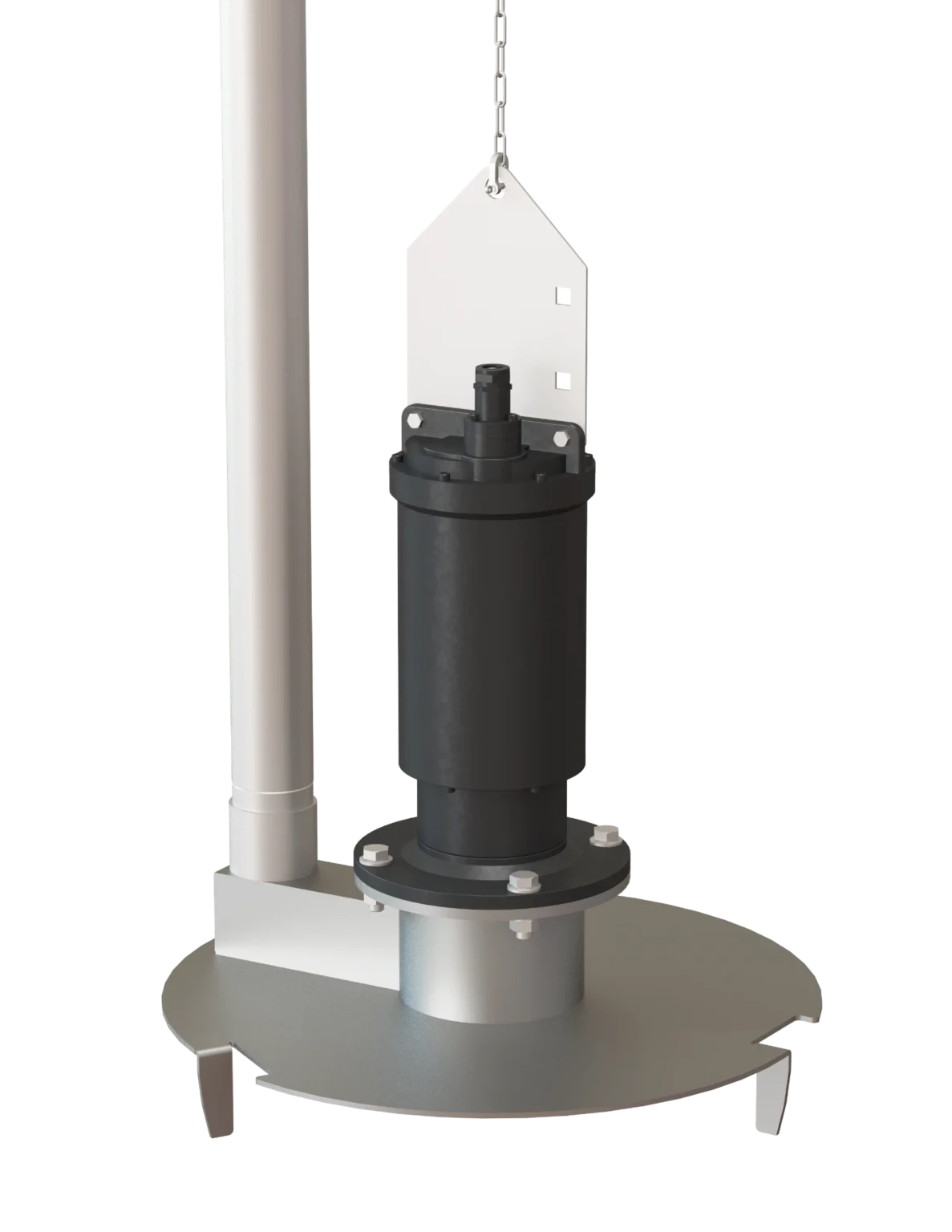

The AeroDyn turbine is composed of several main elements:
- Motor: IE3 motor suitable for wastewater treatment applications.
- Body and turbine: manufactured in 304L or 316L stainless steel for high corrosion resistance.
- Shaft: stainless steel shaft.
- Lifting system: stainless steel chain lifting system to facilitate maintenance operations.
- Electrical cable: standard 10 m cable, extendable on request.
- Safety: anti-pull-out system to protect the electrical cable.
Technical Specifications
- Submerged and self-aspirating operation.
- Micro-bubble diffusion promoting the rise of grease to the surface.
- Compact and anti-clogging design.
- Available in 304L or 316L stainless steel depending on the operating environment.
- Simple lifting by stainless steel chain for easier maintenance.
- Suitable for municipal and industrial wastewater.
Range
The AeroDyn turbine is available in several power ratings, from 0.8 to 4 kW, to meet the requirements of different treatment basins.
| Power | 0.8 kW | 1.5 kW | 2.2 kW | 3.2 kW | 4 kW |
|---|---|---|---|---|---|
| Turbine diameter | 120 mm | 140 mm | 150 mm | 160 mm | 168 mm |
| Maximum immersion | 1.8 m | 2.3 m | 2.6 m | 3 m | 3.5 m |
| Optimal immersion | 1.7 m | 2.2 m | 2.4 m | 2.5 m | 2.7 m |
| Spacing | 1 – 1.8 m | 1.5 – 5 m | 1.5 – 6 m | 2 – 7 m | 2 – 7.5 m |
| Total weight | 48 kg | 52 kg | 70 kg | 83 kg | 105 kg |
| Overall dimensions | Ø 400 mm | Ø 400 mm | Ø 600 mm | Ø 600 mm | Ø 700 mm |
