Presentation

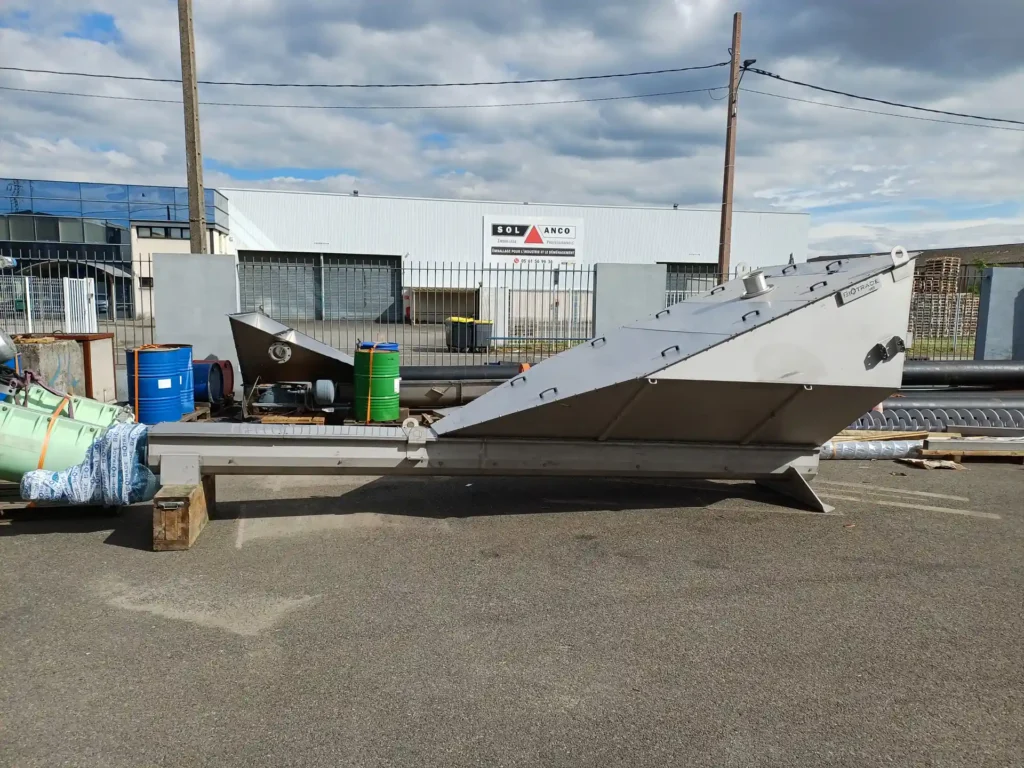

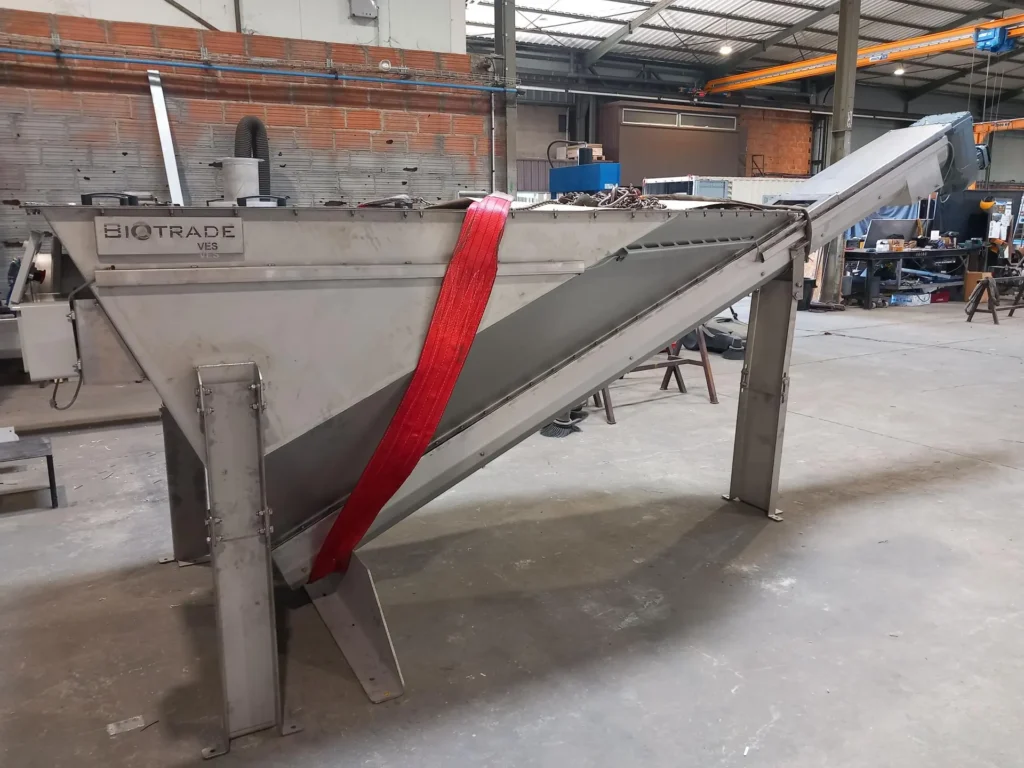

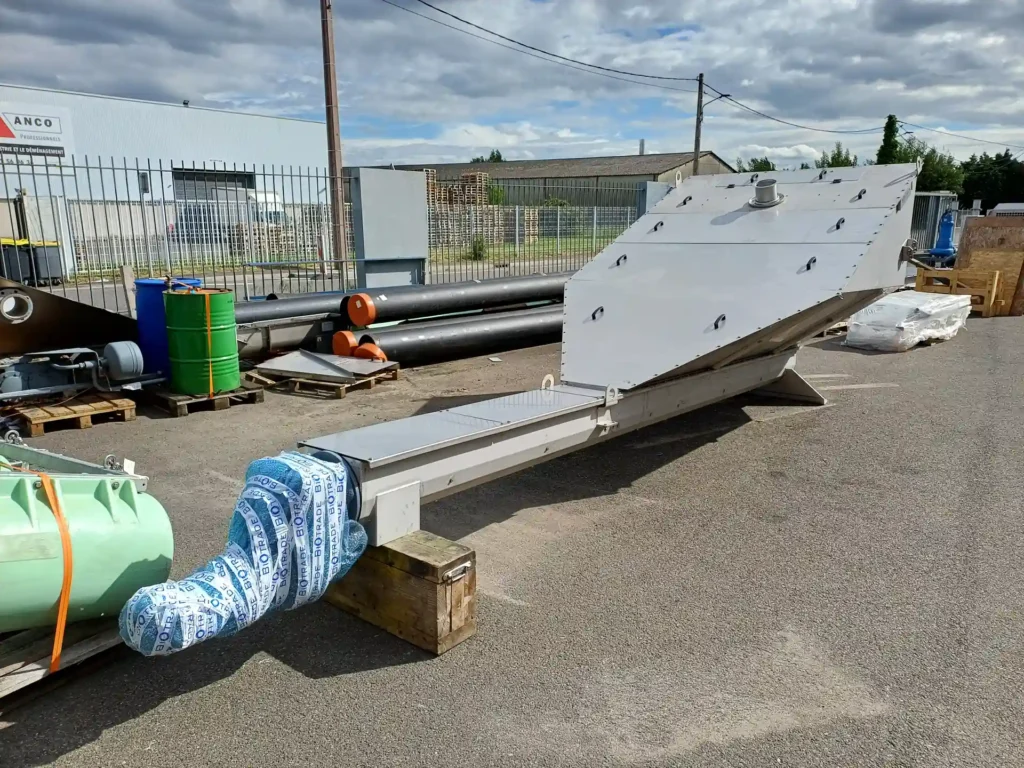

The BioScreen VES is a grit classifier designed for the pre-treatment of municipal or industrial wastewater.
It separates sand, gravel and sediment particles, particularly from a grit and grease separator. Mineral matter is extracted in order to protect downstream treatment equipment.
The BioScreen VES can extract up to 90% of sediments with a diameter greater than 0.2 / 0.3 mm, with a minimum organic matter content of 10%.
Model
BIOTRADE supplies different types of grit classifiers depending on the inlet flow rate, the installation configuration and site constraints.
The BioScreen VES is manufactured in compliance with CE standards and can be integrated into new or existing installations.

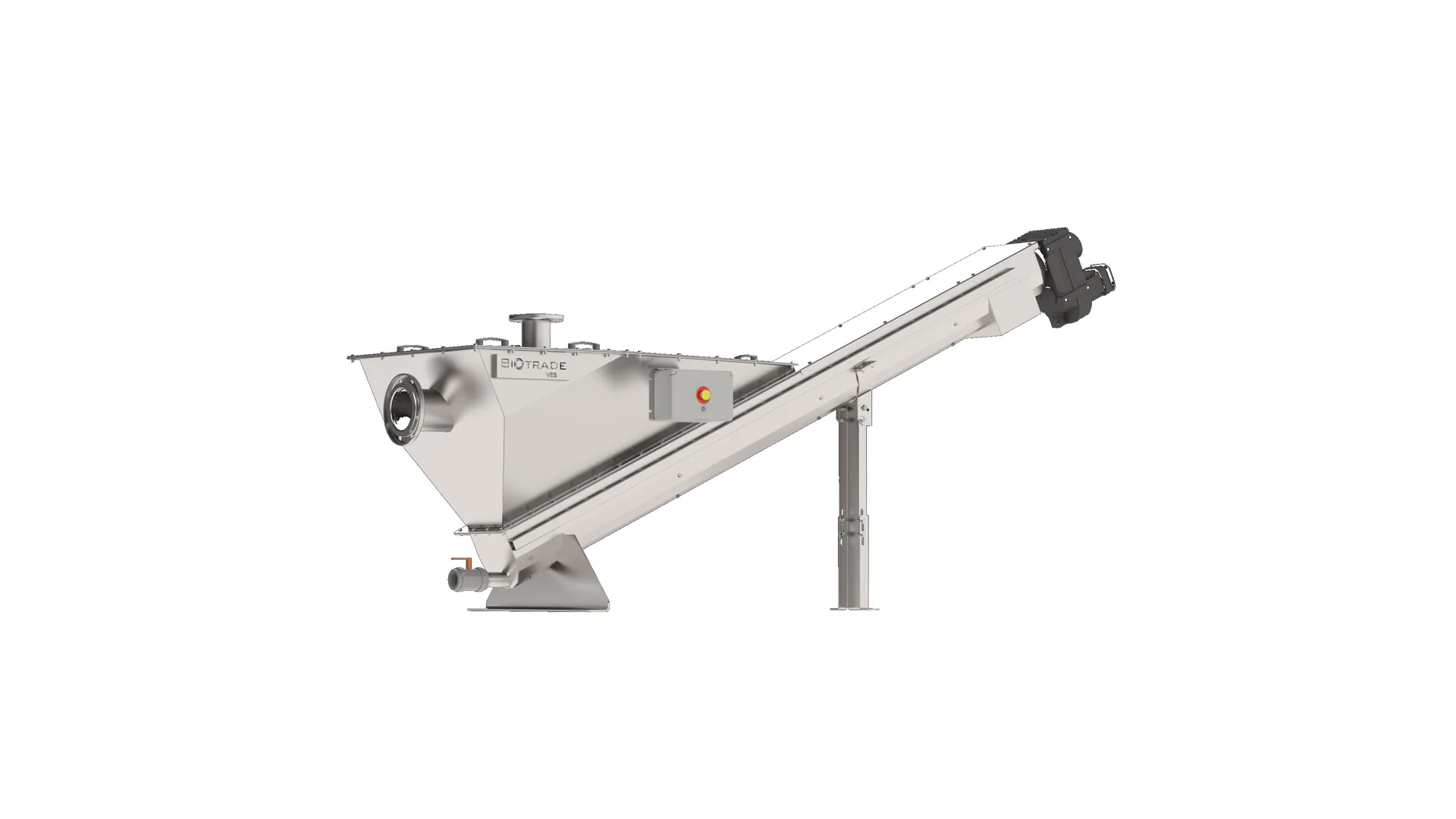

Composition
- Tank: manufactured in 304L or 316L stainless steel, depending on the environment.
- Archimedean screw: shaftless screw made of high mechanical strength steel.
- Wear part: anti-abrasion component made of HB-400 steel.
- Connection: inlet and outlet pipes mounted on swivel flanges.
- Inspection: hatches allowing visual access to the outlet chute.
Technical Specifications
- Grit classifier for municipal or industrial wastewater.
- Separation of sand, gravel and sediments.
- Extraction of 90% of sediments with a diameter greater than 0.2 / 0.3 mm.
- Minimum organic matter content of 10%.
- Accepted flow rates up to 100 m³/h.
- Tank in 304L or 316L stainless steel.
- Shaftless Archimedean screw made of high mechanical strength steel.
- Anti-abrasion wear part in HB-400 steel.
- Swivel flanges for easier connection.
Range
The BioScreen VES range is designed to handle flow rates of up to 100 m³/h and meets grit separation requirements in wastewater pre-treatment installations.
| Criterion | Details |
|---|---|
| Equipment type | Grit classifier |
| Application | Pre-treatment of municipal or industrial wastewater |
| Separated elements | Sand, gravel and sediments |
| Extraction performance | 90% of sediments greater than 0.2 / 0.3 mm |
| Accepted flow rate | Up to 100 m³/h |
| Materials | 304L or 316L stainless steel |
| Wear part | HB-400 anti-abrasion steel |
