Presentation

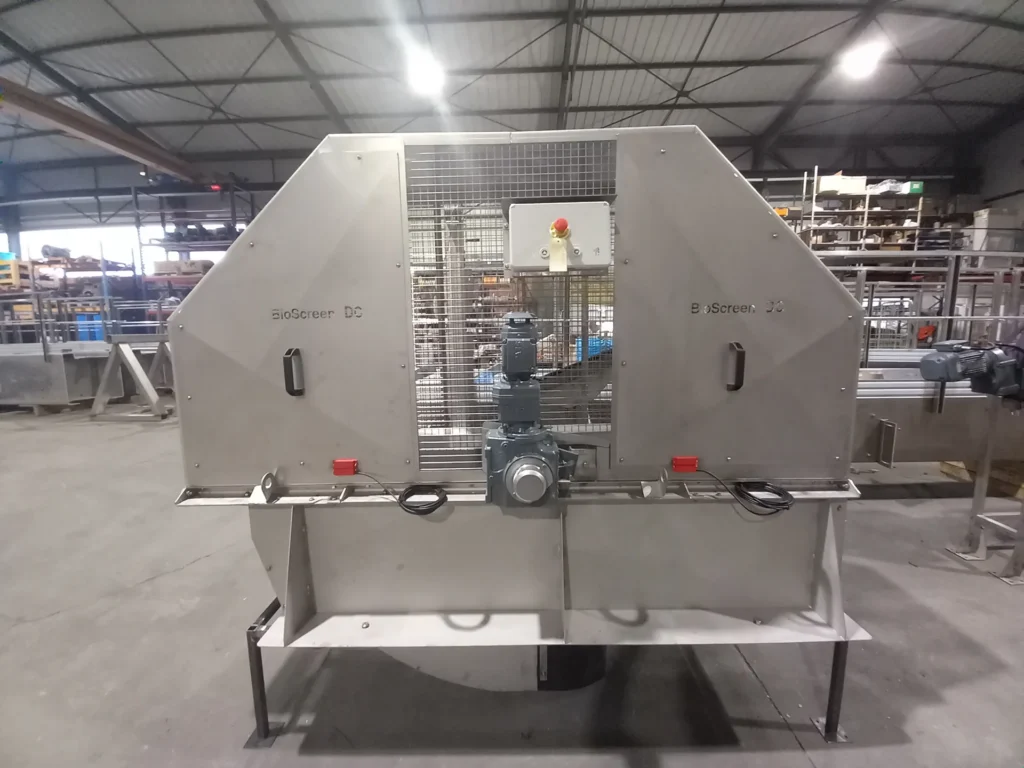

The BioScreen DC is an automatic curved screen designed for the treatment of municipal and industrial wastewater.

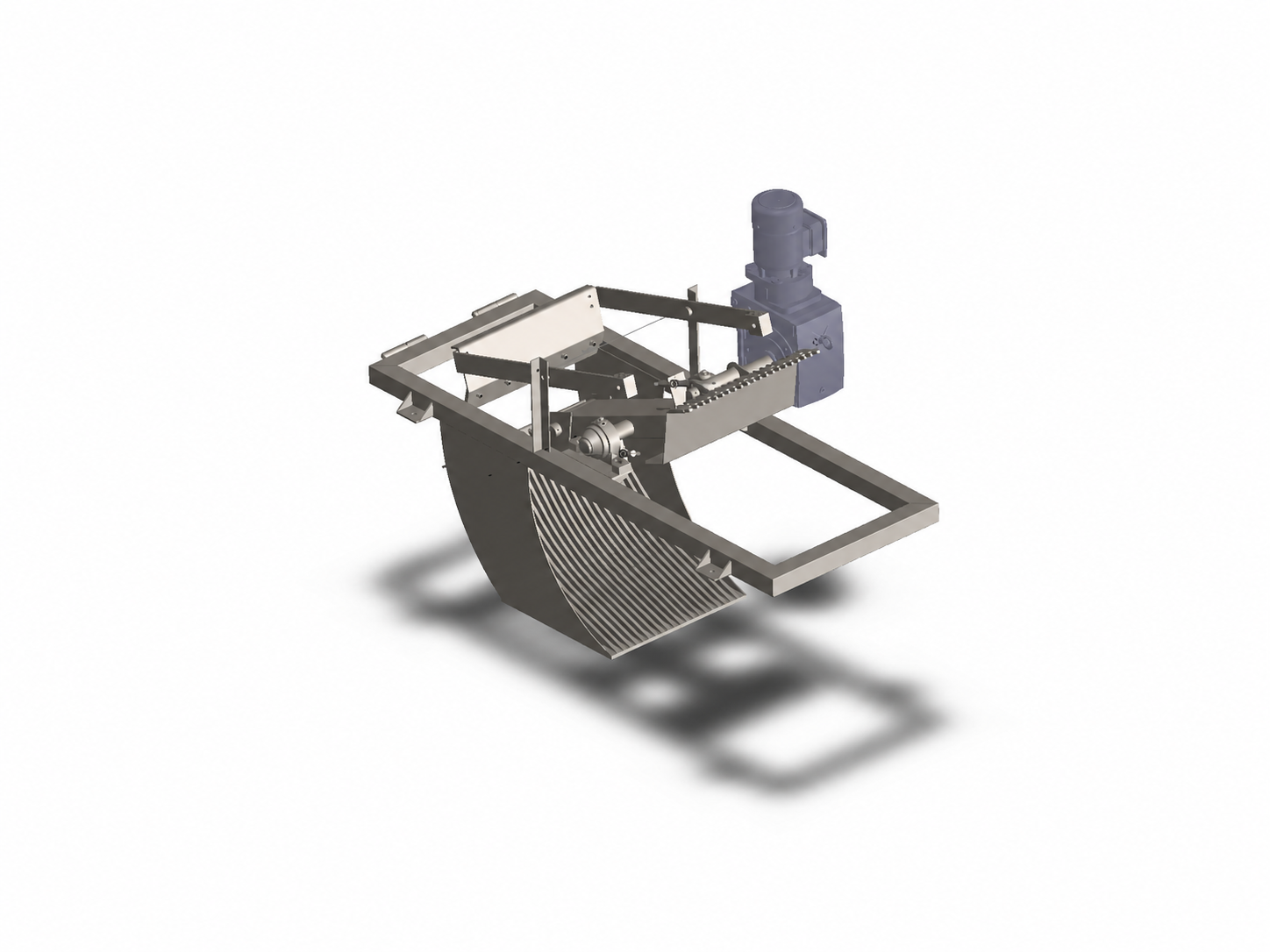

The effluent passes through a curved screen that retains suspended solids on its surface. The screen is cleaned by a rake and scraper mounted at the end of rotating arms.
The screenings are then discharged at the rear of the equipment and collected in a removable perforated basket, a discharge chute, or a conveying and compacting system, depending on the selected configuration.
Model
The BioScreen DC curved screen is designed for new or existing installations, without specific civil engineering constraints.

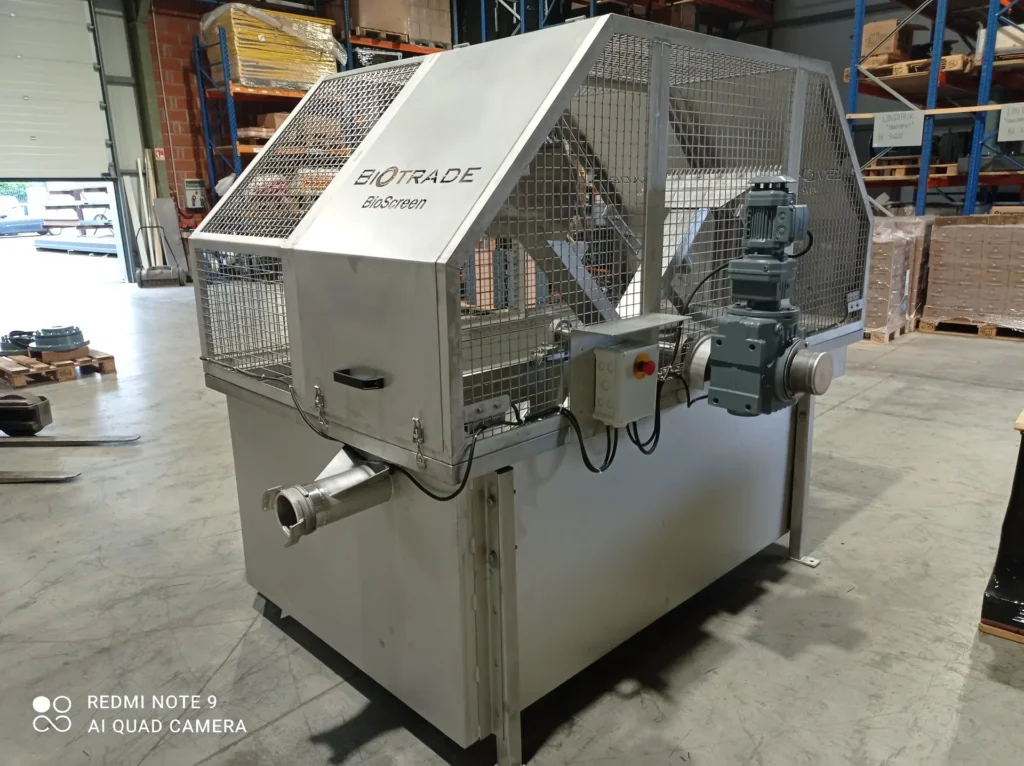

It can be installed directly in a channel or integrated into a watertight stainless steel tank allowing direct connection to pipework.
- Channel installation: suitable for existing or new structures.
- Stainless steel tank installation: watertight solution allowing direct pipe connection.
- Automatic cleaning: ensured by rotating arms, stainless steel rake and HDPE scraper.
Technical Specifications
- Welded stainless steel structure in 304 or 316L stainless steel.
- Screen made of curved bars.
- Screening gap from 3 to 50 mm, depending on requirements.
- Accepted flow rates up to 2,000 m³/h.
- Double scraper arm with stainless steel rake and HDPE scraper.
- Horizontal position stop sensor.
- No submerged mechanical or electrical components.
- Design compliant with CE standards.
Range
The BioScreen DC provides screening from 3 to 50 mm and accepts flow rates of up to 2,000 m³/h. Its 304 or 316L stainless steel design allows it to adapt to municipal and industrial environments.
| Criterion | Details |
|---|---|
| Equipment type | Automatic curved screen |
| Applications | Municipal and industrial wastewater |
| Screening gap | 3 to 50 mm |
| Accepted flow rate | Up to 2,000 m³/h |
| Materials | 304 or 316L stainless steel |
| Installation | In channel or in watertight stainless steel tank |
| Cleaning | Rotating arms with stainless steel rake and HDPE scraper |
