Washer Compactor – BioScreen VCL

Equipment designed for the conveying, washing and compacting of screenings from municipal or industrial wastewater.

Presentation

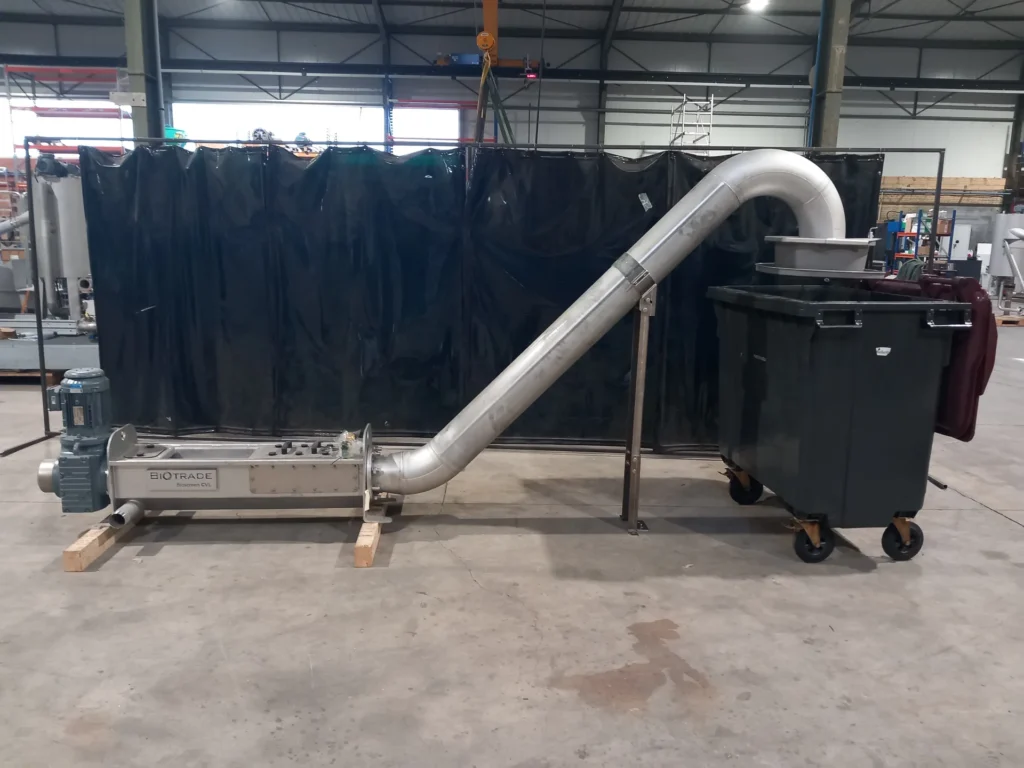

The BioScreen VCL is a washer compactor screw designed for the conveying, washing and compacting of screenings from municipal or industrial wastewater.

The screenings are conveyed by the screw to a washing screen basket, where part of the organic matter is removed. They are then directed to a compacting zone in order to reduce their volume and facilitate disposal.

This equipment improves screenings waste management by combining several functions within a single system: conveying, washing, draining and compacting.

Models

BIOTRADE markets screenings washer compactors suitable for both new and existing installations.

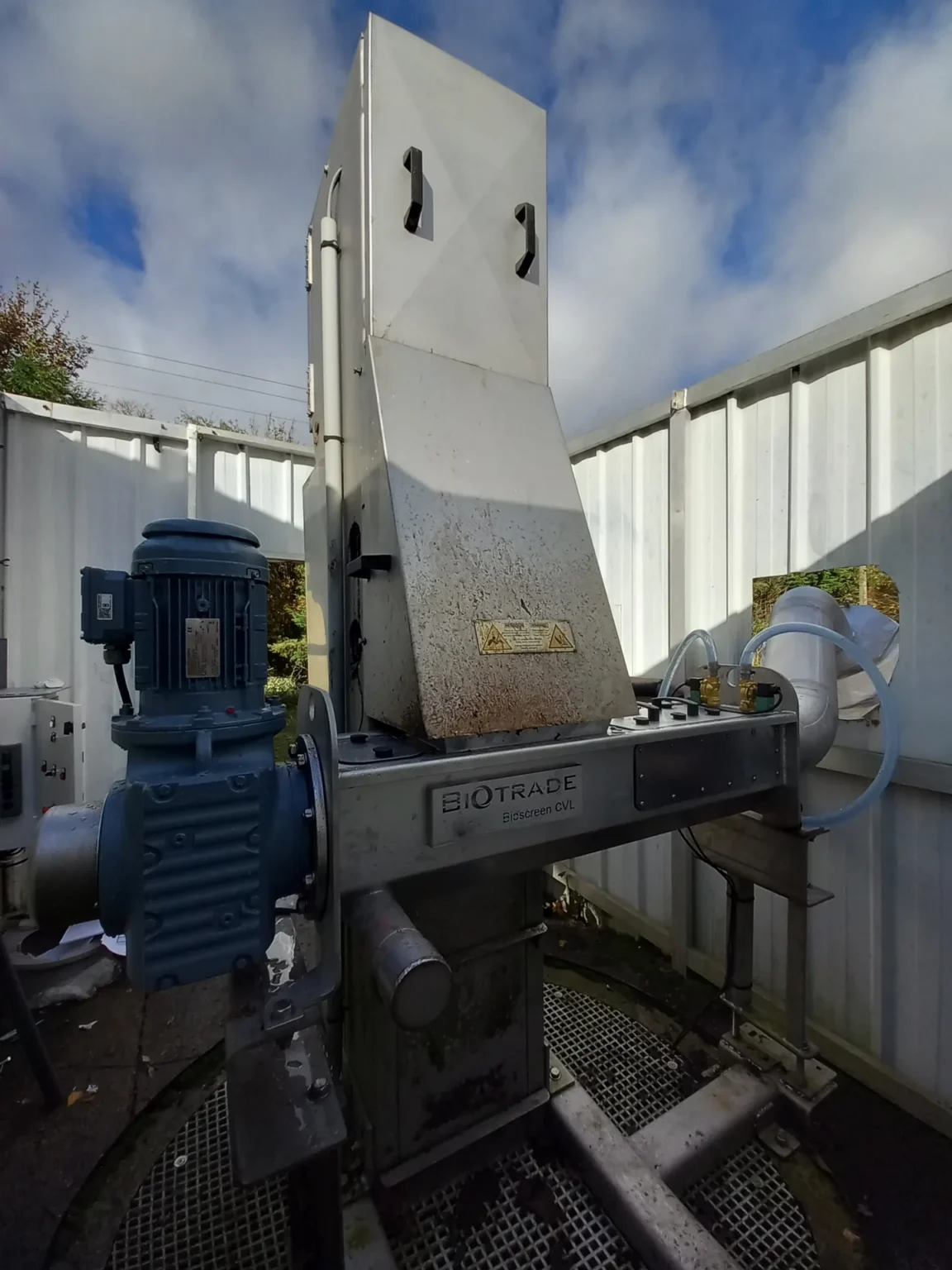

The BioScreen VCL is manufactured in compliance with CE standards and can be installed downstream of a screen or within a wastewater pre-treatment line.

Composition

Body: stainless steel structure, 304L or 316L, with a partially covered section.
Trough: perforated stainless steel trough allowing residual water to drain.
Compacting zone: 304L or 316L stainless steel screen basket.
Feed hopper: dimensions adapted to the installation.
Screw: shafted screw with a high-strength steel core.
Washing: nozzle-based washing system.
Screen basket cleaning: water-cleaning system to reduce clogging.
Maintenance access: two inspection hatches providing access to the trough and screen basket.

Technical Specifications

Conveys, washes and compacts screenings.
Suitable for municipal or industrial wastewater.
Body and screen basket available in 304L or 316L stainless steel.
Perforated trough for residual water drainage.
Nozzle washing system to remove part of the organic matter.
Continuous compacting of screenings.
Two inspection hatches for easier maintenance.
Can be installed on new or existing structures.

Range

Critère	Détail
Equipment type	Washer compactor screw
Application	Screenings from municipal or industrial wastewater
Main functions	Conveying, washing, draining and compacting
Materials	304L or 316L stainless steel
Washing	Nozzle-based washing system
Maintenance	Two inspection hatches for access to the trough and screen basket

Interested in this model?

Get detailed technical documentation or a personalised quote for your project.

Request a quote

Request the technical datasheet

Advantages

Washing of screenings to reduce the presence of organic matter.
Conveying and compacting in a single unit.
Body, trough and screen basket available in 304L or 316L stainless steel.
Perforated trough facilitating residual water drainage.
Water-cleaning system for the screen basket to reduce clogging.
Easy maintenance thanks to inspection hatches.

Accessories

Electronic torque limiter: protects the mechanism in case of blockage.
Electrical control panel: controls and automates the equipment.
Automatic bagging unit: ensures clean handling of compacted screenings.
Longopac bag refill: suitable solution for continuous bagging of waste.

What is the washing system used for?

The nozzle-based washing system removes organic matter attached to the screenings. This step reduces the volume of waste, limits odour nuisance and facilitates disposal.

How is clogging of the screen basket prevented?

A water-cleaning system for the screen basket is integrated as standard to prevent clogging and maintain compacting performance.

What materials are used?

The body, perforated trough and screen basket are made of 304L or 316L stainless steel. The screw has a high-strength steel core.

How is the inside accessed for maintenance?

Two inspection hatches provide direct access to the trough and screen basket, making maintenance operations easier.

Is the BioScreen VCL compatible with a Longopac bag?

Yes, as an option, with an automatic Longofill bagging unit and a Longopac bag refill.
