Sludge Dewatering Unit

Self-contained mobile equipment for the dewatering of municipal and industrial sludge, designed and assembled in our workshops.

Presentation

The BIOTRADE mobile sludge dewatering unit is designed, manufactured and assembled in BIOTRADE workshops.

This self-contained unit performs several stages of sludge treatment: raw sludge pumping, flocculation, dewatering using a BioPress screw press, and discharge of dewatered sludge by conveyor or force-feed pump.

It is suitable for municipal or industrial sludge with concentrations from 6 to 50 g/L. Its mobile design allows operation on different sites, as a temporary, occasional or complementary solution to an existing installation.

The entire unit is controlled by a control panel with PLC and HMI. This system optimises operating parameters such as raw sludge withdrawal flow rate, polymer dosage, residence time in the screw press and washing cycles.

Models

Mobile sludge dewatering units can be supplied in several configurations depending on transport, operating and site installation constraints.

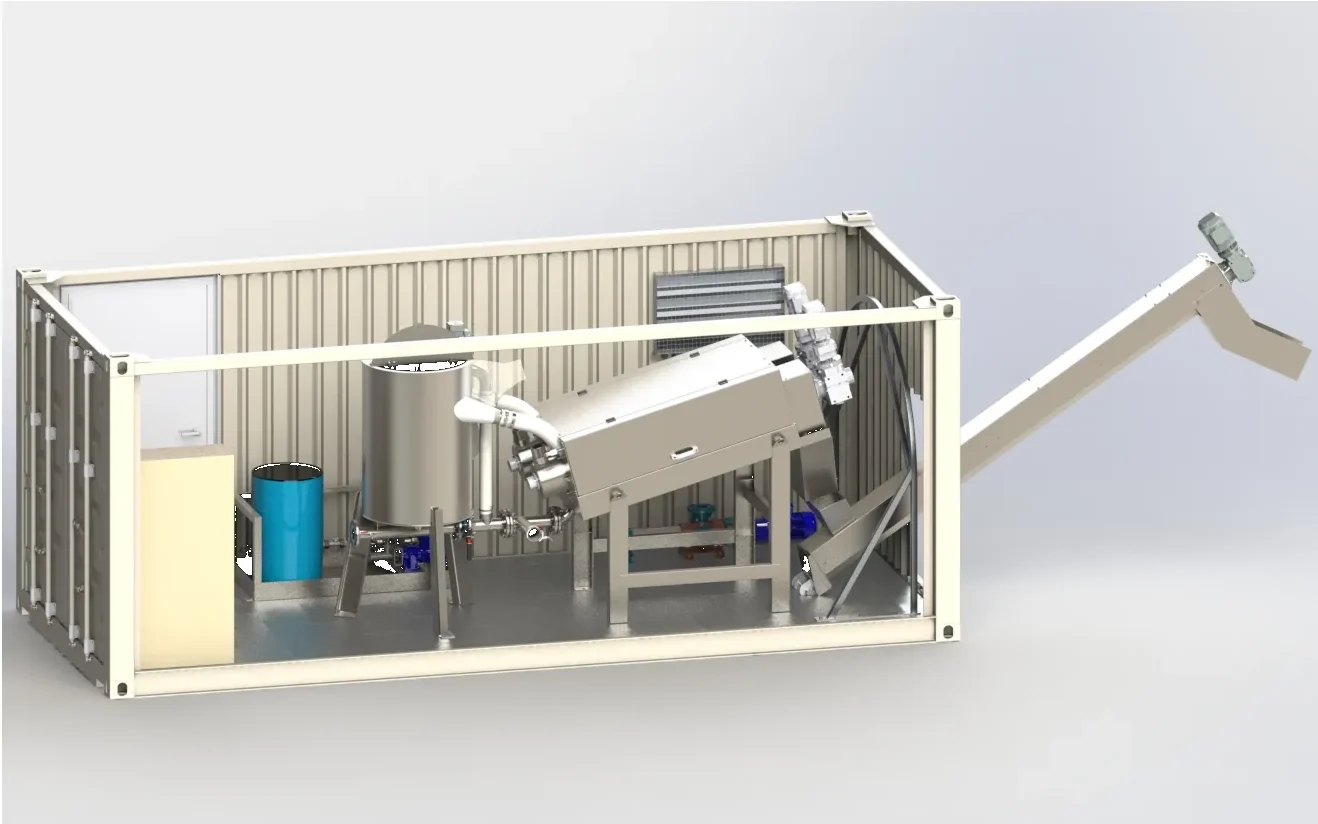

Open-side container: robust mobile solution providing easy access to the equipment.
3.5 t road trailer: compact and transportable configuration.
HGV trailer: version adapted to higher-capacity requirements.
Mobile body: modular solution according to project constraints.

Composition

Raw sludge inlet pump: feeds the unit with sludge to be treated.
Flocculation tank: mixes the sludge with the prepared polymer solution.
BioPress screw press: provides mechanical sludge dewatering.
Polymer preparation unit: prepares the polymer solution required for flocculation.
Conveyor or force-feed pump: discharges the dewatered sludge.
Control panel: PLC and HMI for controlling the entire unit.

Technical Specifications

Self-contained mobile unit for sludge dewatering.
Suitable for municipal or industrial sludge.
Sludge pumping from 6 to 50 g/L.
Dewatering by BioPress screw press.
Integrated polymer preparation.
Dewatered sludge discharge by conveyor or force-feed pump.
Controlled by a control panel with PLC and HMI.
Installation possible in an open-side container, 3.5 t trailer, HGV trailer or mobile body.

Range

BIOTRADE mobile units are configured according to project requirements, sludge concentration, the desired transport method and site operating constraints.

Criterion	Details
Equipment type	Mobile sludge dewatering unit
Applications	Municipal and industrial sludge
Sludge concentration	6 to 50 g/L
Dewatering	BioPress screw press
Polymer preparation	Integrated into the unit
Possible configurations	Open-side container, 3.5 t trailer, HGV trailer or mobile body
Control	Control panel with PLC and HMI

Interested in this model?

Get detailed technical documentation or a personalised quote for your project.

Request a quote

Request the technical datasheet

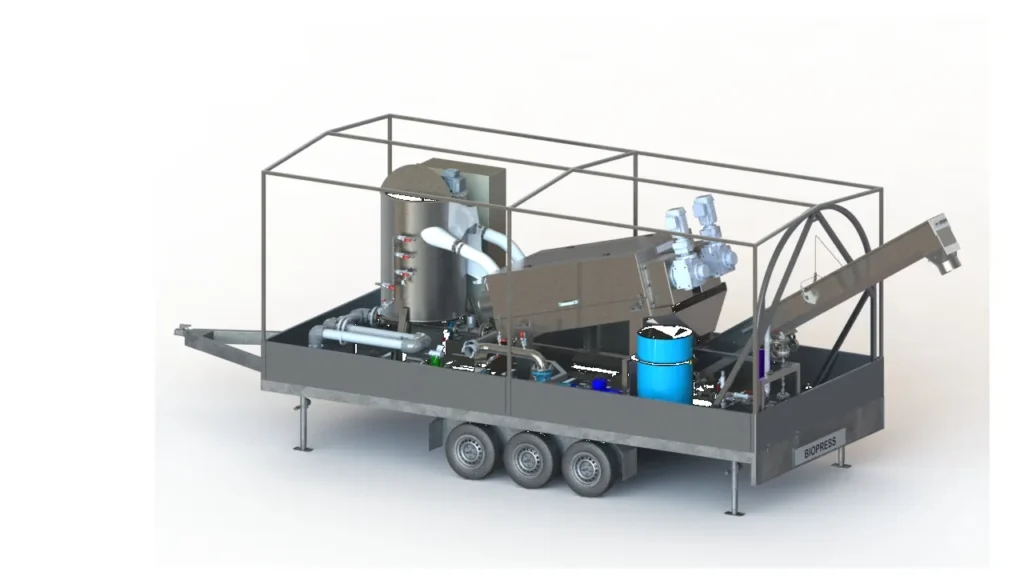

Advantages

Self-contained mobile unit, suitable for operations on different sites.
Low energy consumption, with possible connection via a 32 A socket.
Quick installation: approximately 2 hours for electrical and hydraulic connection and start-up.
Robust operation, with continuous running possible depending on the configuration.
Simplified operation thanks to the control panel with HMI.
Remote control possible via GSM modem.
Wide accepted concentration range: sludge from 6 to 50 g/L.

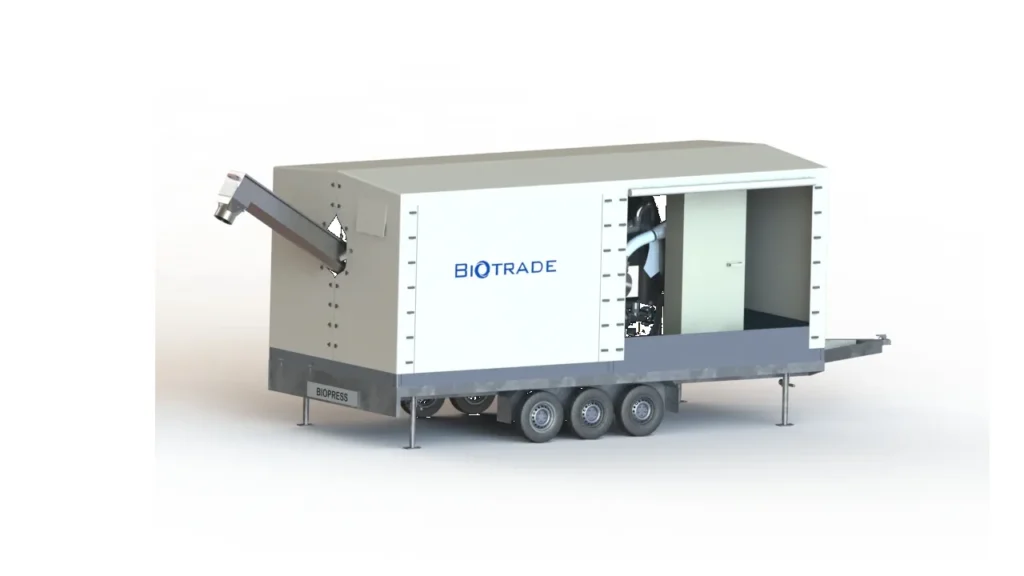

Options and Accessories

GSM modem: enables remote access to the unit.
Monitoring camera: real-time remote monitoring.
Flexible piping: external hydraulic connection.
Macerator grinder: preparation or protection of the pumping system, depending on site requirements.
Unit heater: maintains suitable operating conditions in certain environments.

What is the mobile sludge dewatering unit used for?

It is used to treat municipal or industrial sludge directly on site, carrying out pumping, flocculation, dewatering with a BioPress screw press, and discharge of the dewatered sludge.

What types of sludge can be treated?

The unit is suitable for municipal and industrial sludge, with concentrations ranging from 6 to 50 g/L.

What configurations are available?

The unit can be supplied in an open-side container, a 3.5 t road trailer, an HGV trailer or a mobile body, depending on the project constraints.

How is the unit controlled?

It is controlled by a control panel with PLC and HMI, allowing the operating parameters and washing cycles to be managed.

What are the advantages of this mobile unit?

It is self-contained, quick to install, suitable for different sites, easy to operate, remotely controllable and compatible with a wide range of sludge concentrations.
