Drum filter

Tertiary treatment equipment for wastewater filtration, suspended solids removal and solid-liquid separation.

Filtre à tambour BIOTRADE pour le traitement tertiaire des eaux usées.

Presentation

The BIOTRADE drum filter is a tertiary treatment unit designed to remove suspended impurities and solid particles from wastewater.

It consists of a primary filter medium, a drive system, a backwash system, and an automatic control system.

Operating via gravity or pressure differential, it ensures efficient solid-liquid separation as water passes through the filter drum.

Thanks to its mechanical strength, chemical stability, and automated operation, the drum filter is suitable for municipal, industrial, hospital, tourism, and aquaculture facilities.

Functioning

  • Water enters the hollow drum through the inlet opening.
  • Driven by gravity, the water passes through the filter screen from the inside out.
  • The drum rotates slowly, retaining solid matter on the inner surface of the screen.
  • The wash pump draws a portion of the filtered water for backwashing.
  • Nozzles spray pressurized water onto the top of the drum.
  • The filter screen is rinsed from the outside in.
  • The dislodged particles are collected in the tank and then discharged through the drain outlet.

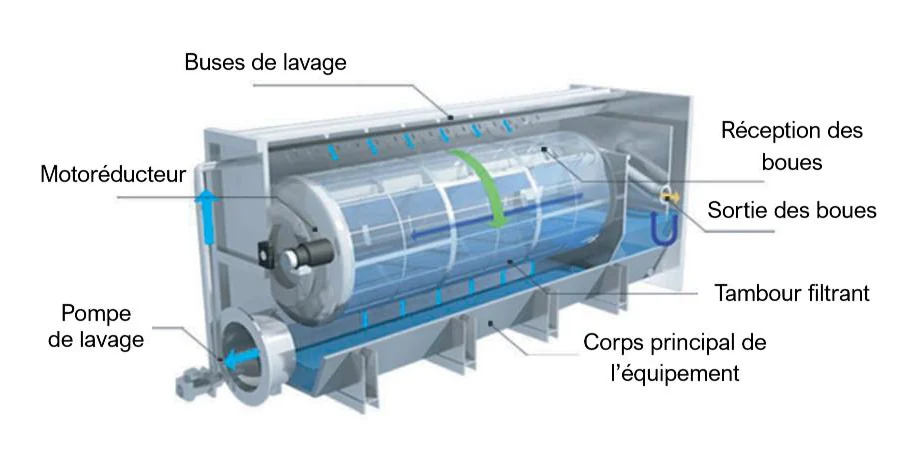

Composition

  • Main filter medium.
  • Rotating filter drum.
  • Geared motor drive system.
  • Wash pump.
  • Backwash nozzles.
  • Main equipment body.
  • Automatic control system.

Technical Specifications

  • Filter media service life of up to 2 years.
  • Simplified filter media replacement thanks to independently removable panels.
  • Capable of operating with suspended solids (SS) concentrations of up to 100 mg/L.
  • Continuous operation: independent filtration and backwashing.
  • Pressure loss of less than 300 mm water column.
  • Effluent water quality with suspended solids (SS) below 10 mg/L.
  • Fully automatic control; no manual intervention required.
  • Compact footprint compared to other filtration equipment.
  • Low backwash water consumption: approximately 0.3% of the treated water volume.

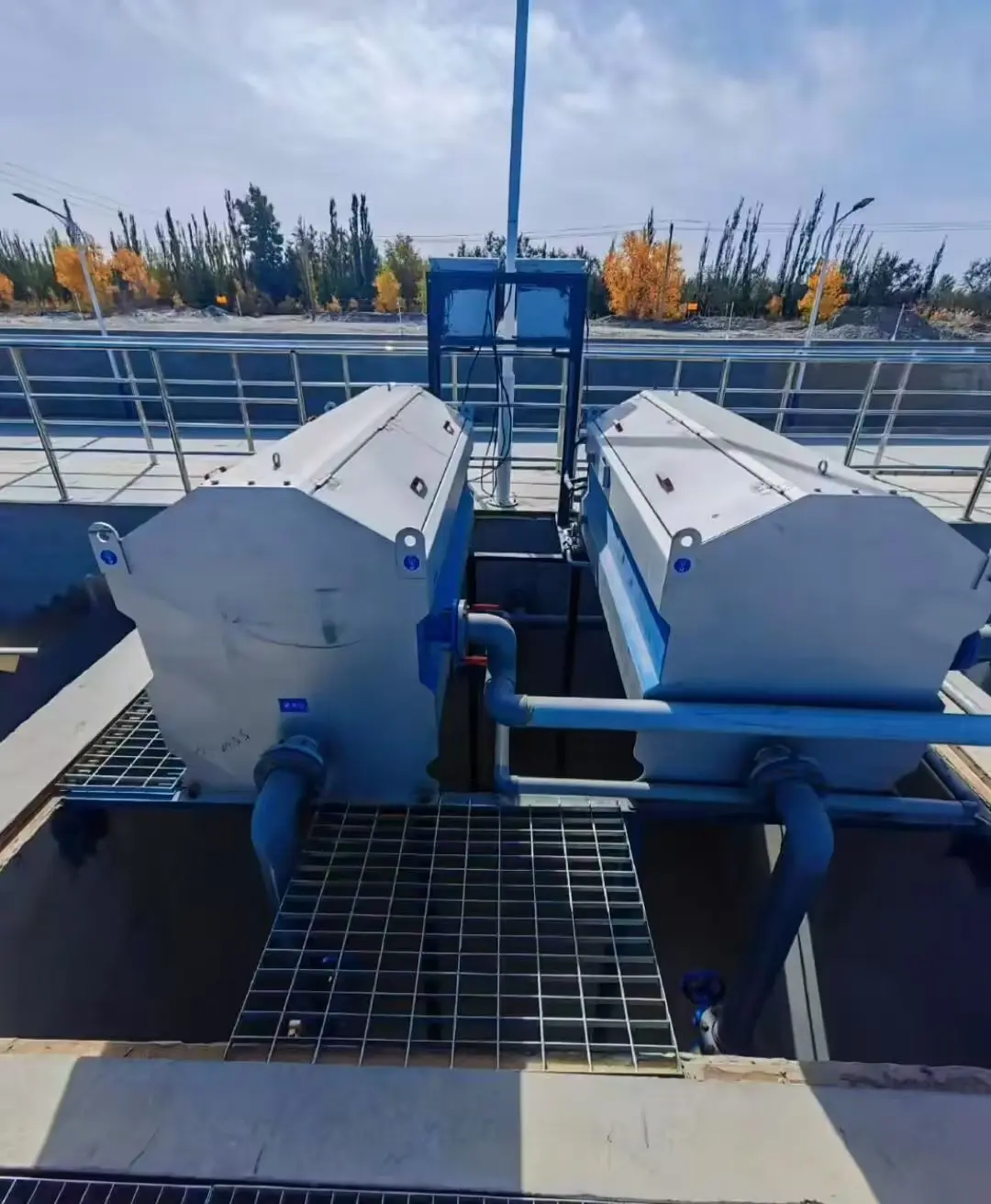

Applications

  • Urban wastewater treatment plants.
  • Schools, hospitals, and military facilities.
  • Industrial sites, factories, and mines.
  • Tourist sites.
  • Slaughterhouses and aquaculture farms for wastewater filtration and reuse.

Interested in this model?

Get detailed technical documentation or a personalised quote for your project.

Request a quote
Request the technical datasheet

Advantages

  • Efficient filtration of suspended solids and solid particles.
  • High outlet water quality, with suspended solids below 10 mg/L.
  • Automatic and continuous operation.
  • Backwashing independent from the filtration phase.
  • Low wash water consumption: approximately 0.3% of the treated volume.
  • Limited head loss, below 300 mm water column.
  • Filter media replaceable by independent panels.
  • Compact equipment, suitable for space-constrained installations.

Spare Parts and Maintenance

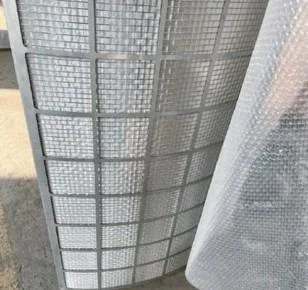

  • Filter media: independent panels that can be removed separately for easier replacement.
  • Filtering drum: main component ensuring solid-liquid separation.

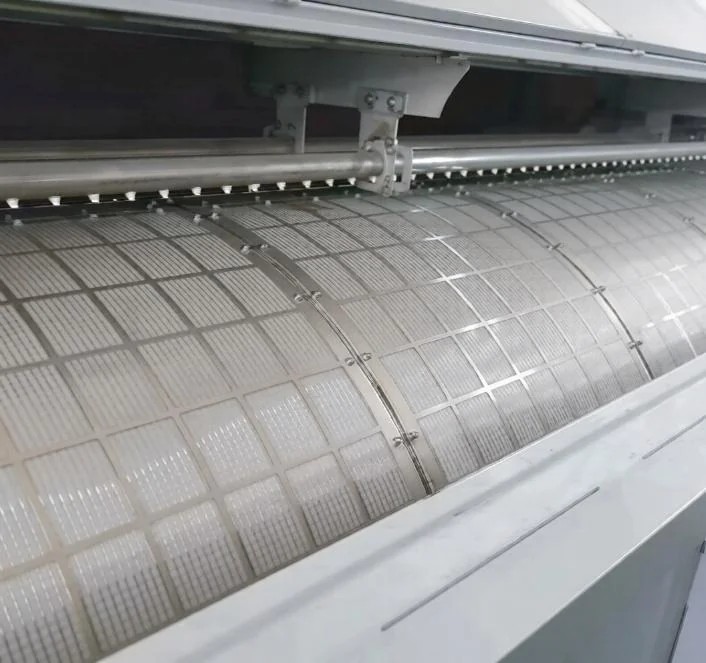

  • Washing nozzles: provide backwashing of the filter media.
  • Washing pump: uses part of the filtered water for automatic cleaning.

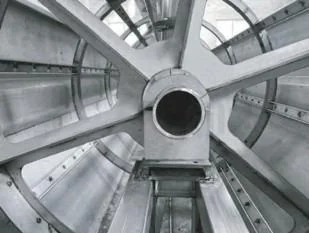

  • Internal structure: robust mechanical construction ensuring stable operation.

What is the drum filter used for?

The drum filter is used to remove suspended solids and solid particles from wastewater. It provides efficient solid-liquid separation in tertiary treatment installations.

How does the drum filter work?

Water passes through a rotating filtering drum that retains solid particles. The filter media is then automatically cleaned by a backwashing system.

Does the drum filter require manual intervention?

No, its operation is automatic. Filtration and washing can operate continuously, with limited intervention required for maintenance operations.

What water quality can be achieved at the outlet?

Depending on operating conditions, the drum filter can produce filtered water with suspended solids below 10 mg/L.

Is the filter media replaceable?

Yes, the filter media consists of independent panels that can be removed separately, making replacement and maintenance operations easier.
