Sludge Thickeners

Custom-made circular equipment for sludge thickening, scraping and homogenisation in municipal or industrial wastewater treatment plants.

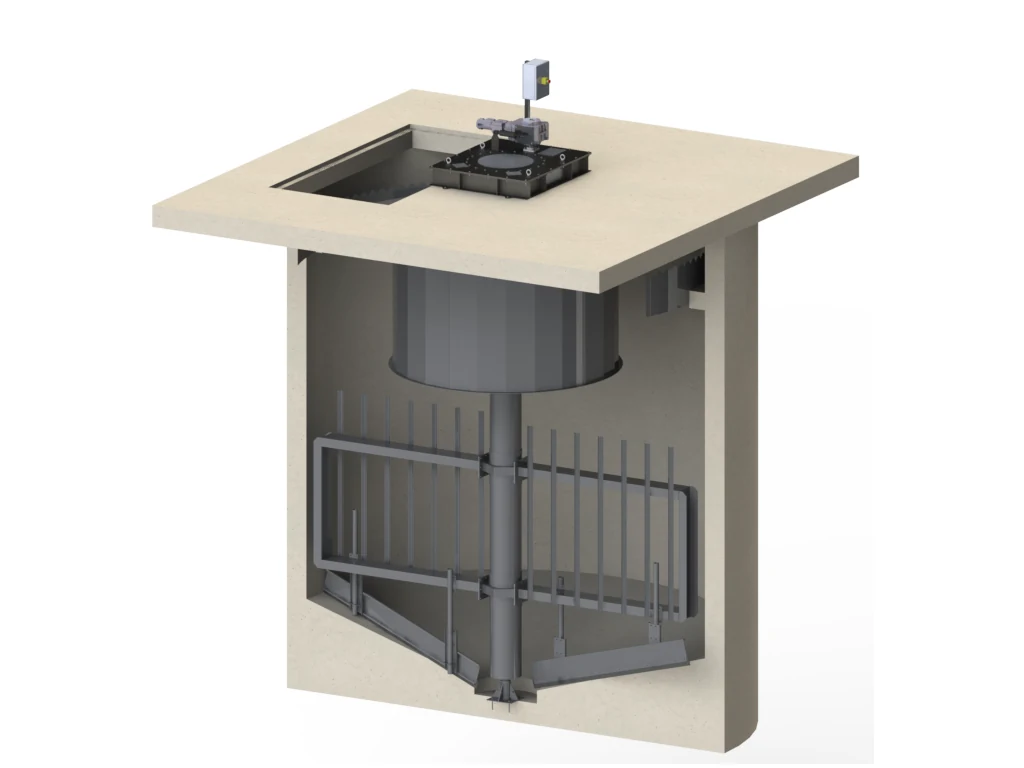

Épaississeur à herse BIOTRADE pour bassin circulaire de station d'épuration urbaine ou industrielle.

Presentation

BIOTRADE sludge thickeners are designed to adapt to all types of circular tanks, whether for municipal or industrial wastewater treatment plants.

They operate on the same principle as rake thickeners, but without a rake: they provide efficient sludge scraping and thickening with a robust design that can be adapted to all types of civil engineering structures.

Models

BIOTRADE provides custom-made solutions for:

Rake thickeners.

Lamella clarifier scrapers.

Technical Specifications

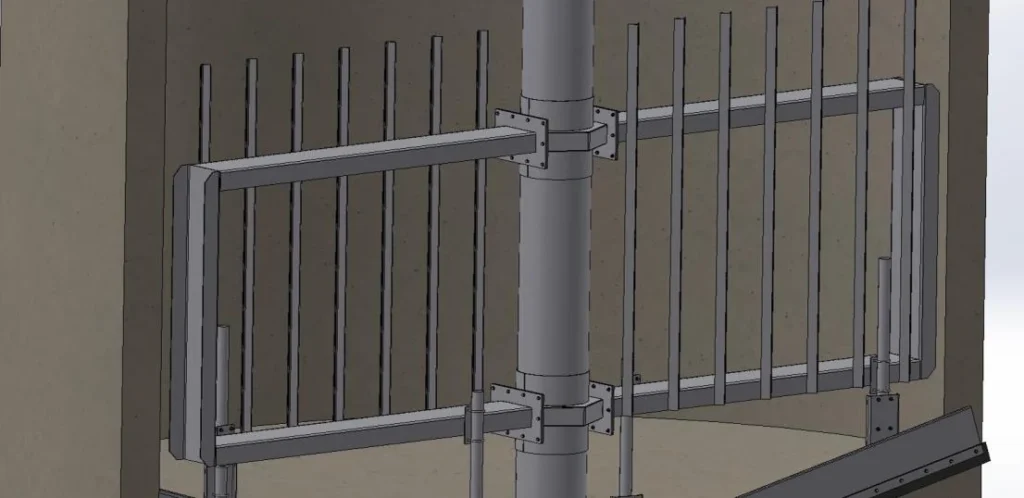

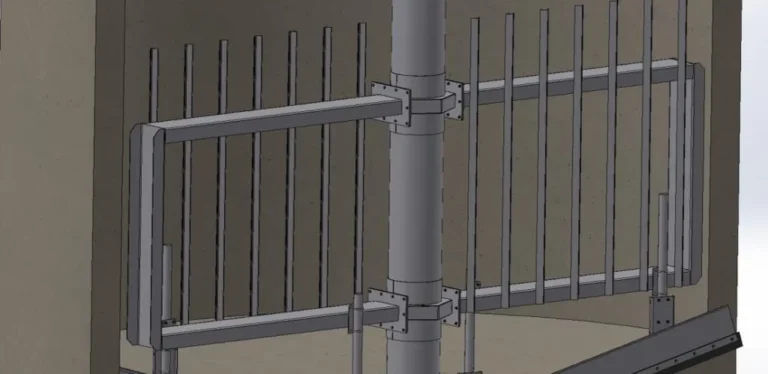

  • Structure: 304L or 316L stainless steel, with other materials available on request. Drive unit: horizontal gear motor with toothed wheel. Rake: UPN frame and angle bars. Bottom scraping: louvered or continuous blades with rubber scraper strip. Clifford: stainless steel, supported by adjustable tubular supports. Rotation indicator: visual indicator or electronic detector.

Interested in this model?

Get detailed technical documentation or a personalised quote for your project.

Request a quote
Request the technical datasheet

Advantages

  • Adaptability: Custom design for all types of tanks or clarifiers.
  • Durability: Resistant materials, 304L / 316L stainless steel, for a long service life.
  • Optimal scraping: Structure designed for efficient and uniform scraping.
  • Safety: Integrated safety equipment, including buoys, boat hook and lifeline.
  • Simplified maintenance: Optimised access for maintenance operations.

Options

  • Mechanical or electronic torque limiter.

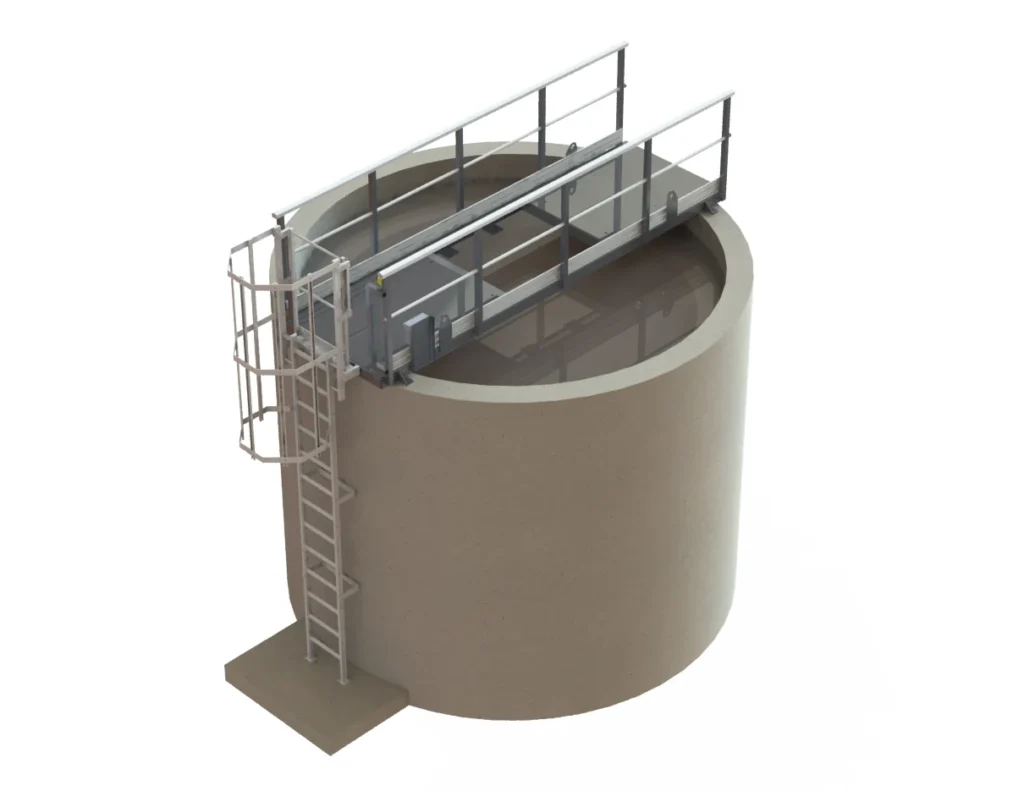

  • Aluminium or stainless steel walkway with safety elements.
  • Immersed side ladder or access ladder.
  • Remote electrical control cabinet.
  • Rotation detector / revolution counter.
  • Stainless steel trough for clear water.
  • Conical stainless steel cover.

What materials are available?

BIOTRADE offers 304L or 316L stainless steel for the immersed structure, as well as aluminium options for walkways.

What is the standard rake height?

The rake height generally corresponds to one third of the tank height, but it can be adjusted according to the project requirements.

What is the difference between a rake thickener and a lamella clarifier scraper?

The rake thickener uses an angle-bar rake for scraping. The lamella clarifier scraper operates without a rake, with blades adapted to lamella clarifiers.

What are the manufacturing lead times?

Drawings are usually issued approximately 2 weeks after validation of the requirements. Manufacturing then takes around 14 weeks, with an indicative lead time that may vary depending on the selected options.

Can a walkway or ladder be added?

Yes, BIOTRADE can provide aluminium or stainless steel walkways, immersed side ladders and access gates as optional equipment.
